Touch screen monitors seem to be everywhere. The great thing about them is that they are extremely easy to use. They function like an invisible keyboard, but display only as much data and button choices as users need to complete a task. That explains their popularity in devices from ATM's to mall kiosks and hospital operating rooms to complex industrial machinery.
Touch Screen Lcd
The most important decision in selecting the best monitor for your application will be the type of touch screen technology to use. There are several types, each with its own advantages and disadvantages. We will cover the three most common types:
Touch Screen Lcd
Resistive Technology:
A resistive monitor is composed of a glass panel covered with thin conductive and resistive metallic layers, separated by a thin space. When a user touches the screen, the 2 layers touch at that point. The computer detects the change in the electrical field and calculates the touch point.
Resistive screens are generally the most affordable, but they only offer approximately 75-80% image clarity. The touch can be activated with nearly any type of object (stylus, gloved finger, etc.), but the outer surface can be damaged with sharp objects. Resistive screen panels are not affected by dust or water on the surface; they are the most common type used today.
Capacitive Technology:
In a capacitive monitor, a layer that stores a continuous electrical current is placed on top of the monitor's glass panel. When an exposed finger touches the monitor screen, some of the electrical charge transfers to the user. This decrease in capacitance is detected and located by circuits located at each corner. The computer then determines the touch point.
Capacitive screens are a durable technology that is often used in kiosks, point-of-sale systems and industrial machinery. Capacitive screens have a higher clarity than resistive-type (88-92%), and have greater endurance (up to 225 million touches) than a Resistive-type. However, capacitive screens can only be activated with an exposed finger (no gloves, pointers, etc.)
SAW Technology:
SAW (Surface Acoustic Wave) monitors utilize a series of transducers and reflectors along the sides of the monitor's glass plate to create an invisible grid of ultrasonic waves on the surface. When the panel is touched, a portion of the wave is absorbed. The receiving transducer locates the touch point, and sends this data to the controller.
SAW screens have no layers on the screen, thus enabling over 90% image clarity, and can display high-detail graphics. They can be activated by a finger, gloved hand or soft-tip stylus. However, SAW panels are the most expensive of the three, and contaminants on the surface (moving liquids or condensation) can cause false-triggers; solid contaminants on the screen can create non-touch areas, until they are removed.
Other Considerations:
Other factors to consider in your selection process include:
Interface: Touch screen panels must communicate with the computer. The most common interface types are RS-232 and USB. New HID-compliant touch screen monitors eliminate the need for drivers.
Mounting: Options include panel mount, rack mount and free-standing. If free-standing, be sure that it uses a heavy-duty stand designed for it; standard table top bases will topple over.
Environment: Available in standard, stainless steel and waterproof enclosures for a variety of environments.
Screen Size: Available from 3.5" to 52". The most common sizes are 15"-19", and 32"-42" for large control rooms. The aspect ratio (4:3 or 16:9) should also be considered.
The type of monitor you select will be contingent upon many factors, including type of data to be displayed (video, graphics, text), the intended users, the operating environment and where/how it will be mounted. Chosen correctly, touch screen monitors will be an excellent addition to your system.
How To Select The Best Touch Screen LCD Monitor
Touch Screen Lcd
Click for larger image and other views
>> Click here to update Cheapest prices for Cbus Wireless Three LCD Screen Guards / Protectors for Apple iPod Touch 4 / 4G / 4th Gen <<

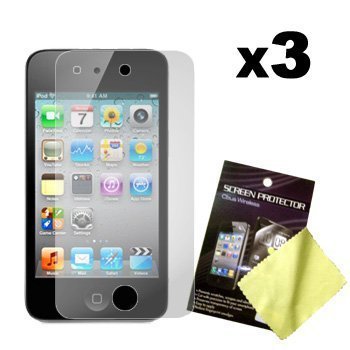

Cbus Wireless Three LCD Screen Guards / Protectors for Apple iPod Touch 4 / 4G / 4th Gen Feature
